Features Overview

Green and efficient water cooling system:

This equipment adopts a special structure and control design, and the water production efficiency has reached 330 watts per liter, which is higher than that of its peers.

High Efficiency Modular Power Supply System:

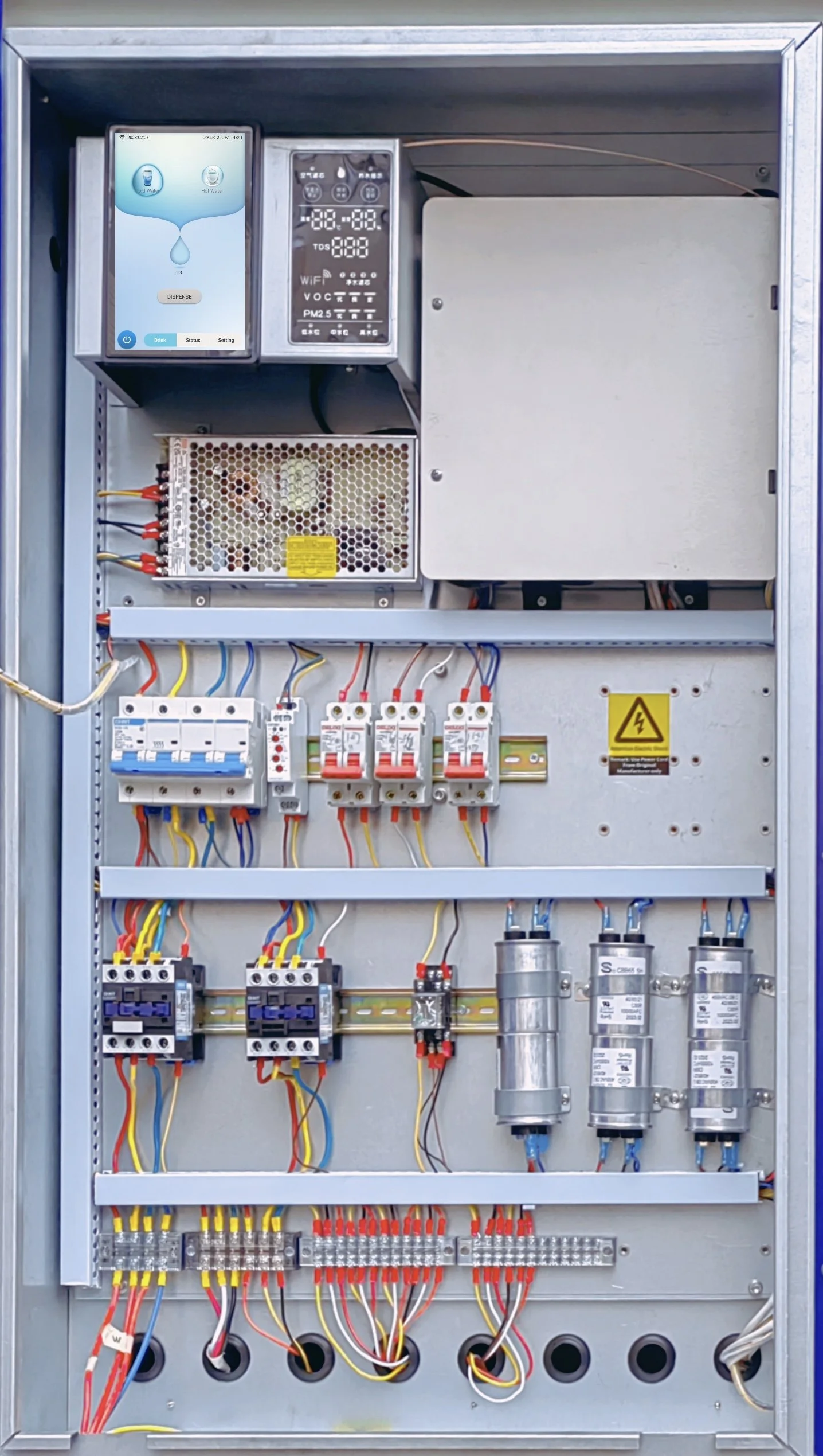

Modular power distribution cabinet. The integrated power distribution cabinet is adopted to truly realize integrated power distribution, which greatly saves space.In addition, it is equipped with an intelligent power tester, which can measure the voltage, current, power factor of the input power supply and the output current of each channel, and realize 7×24 uninterrupted monitoring.

Powerful management content statistics and output:

The device has IOT function, which can centrally monitor the running status of the device and improve maintenance experience

Filter life statistics

The running status indicator light outside the machine, and the internal machine status detailed viewing screen

Report management, providing standardized templates to achieve rapid output of reports

The report template system has built-in rich report templates and report styles

Report output supports excel document format

Visual presentation of histograms, pie charts, and graphs with rich report types

Features:

Water source from atmosphere/ air moisture

Top grade material and low power consumption

UV sterilization and water circulation for the disinfection timely

Muilt-stage filtration system to provide you the safety pure drinking water

Specification:

Model: KC-500SB

Type: Floor type

Capacity: 500L/Day

Rated Voltage: AC220-240V 1Ph

AC220-240/380-400V 3Ph

Frequency: 50Hz/60Hz

Filter system:UF

Sterilization: UV

Anti-electric shock: I

Refrigerant: R410A

Refrigerant Volume: 1.53KGX2

Temperature: 15ºC~43ºC

Humidity: > 25%

Water tank volume: 120L

Water-making Power: 6300W

Waterproof rate: IPX3

Net Weight: 350kg

Dimension( W*L*H):1626*1286*1812mm

Atmospheric Water Generator
